MixMe8 Module

This is a passive summing mixer which takes 8 inputs and puts out 1 output. We have used this in audio applications.

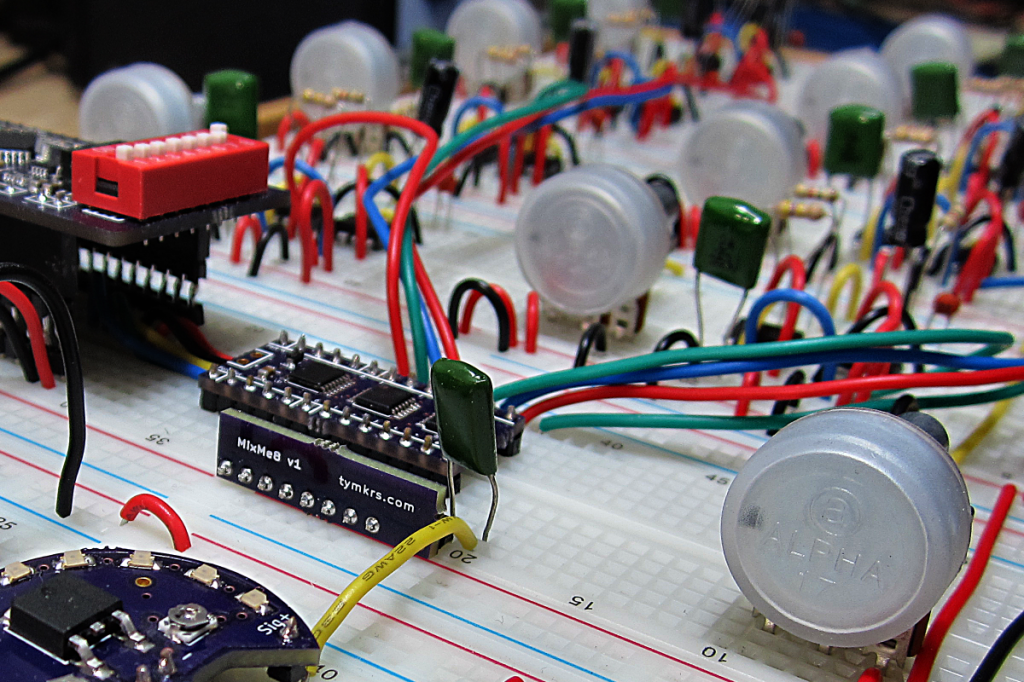

This simple, but useful module is a passive summing mixer. It takes 8 inputs and puts out 1 output (unbalanced). We’ve used this as a summing mixer for 8 audio inputs.

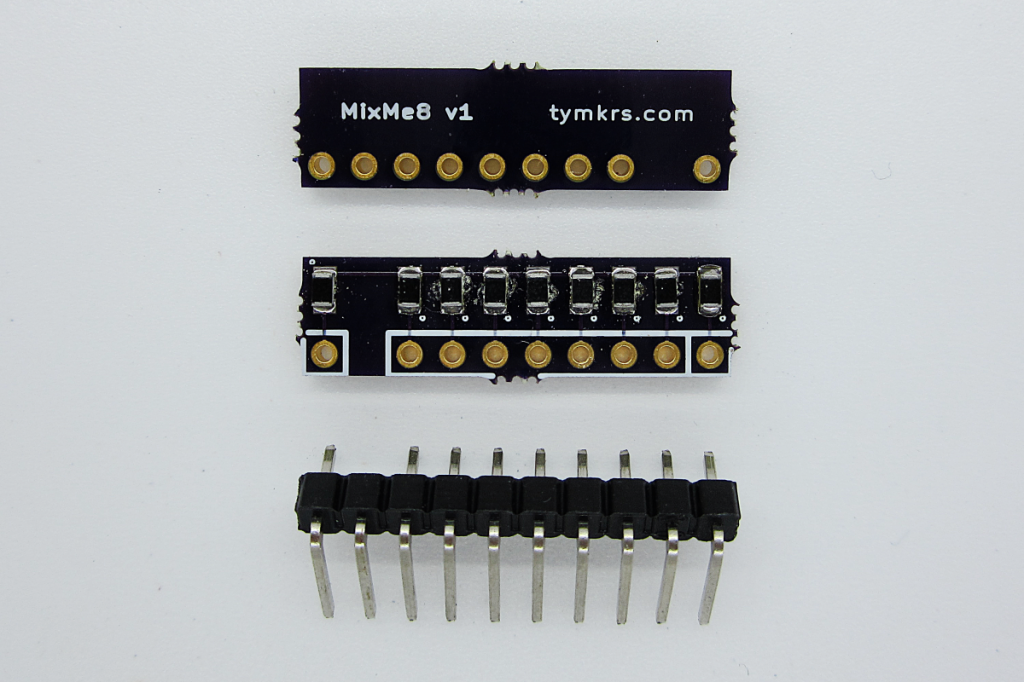

Kit Parts:

  • Populated PCB
  • Custom 1×10 right angle male header
Build Notes:

Very simple! You put your 8 signals in the adjacent 8 pins, and the isolated pin is your output!

Example Video:
